Kit, crimper, battery hydr, b/tooth, dieless, 10-240mm2, 2 x 4Ah 18v Li, klauke
Code: EK60VPCFM-K
Brand: Klauke
Product Details
Kit, crimper, battery hydr, b/tooth, dieless, 10-240mm2, 2 x 4Ah 18v Li, klauke
Kit Components
This item contains the following components:
- 1 x Crimper, battery hydraulic, 18V, b/tooth, dieless, 10-240mm2, skin, Klauke
- 2 x Battery, spare, 18v Li, 4Ah, 36min charge time, Makita
- 1 x Part, charger, battery, spare, 240v, rapid charge, 18v Li, Makita

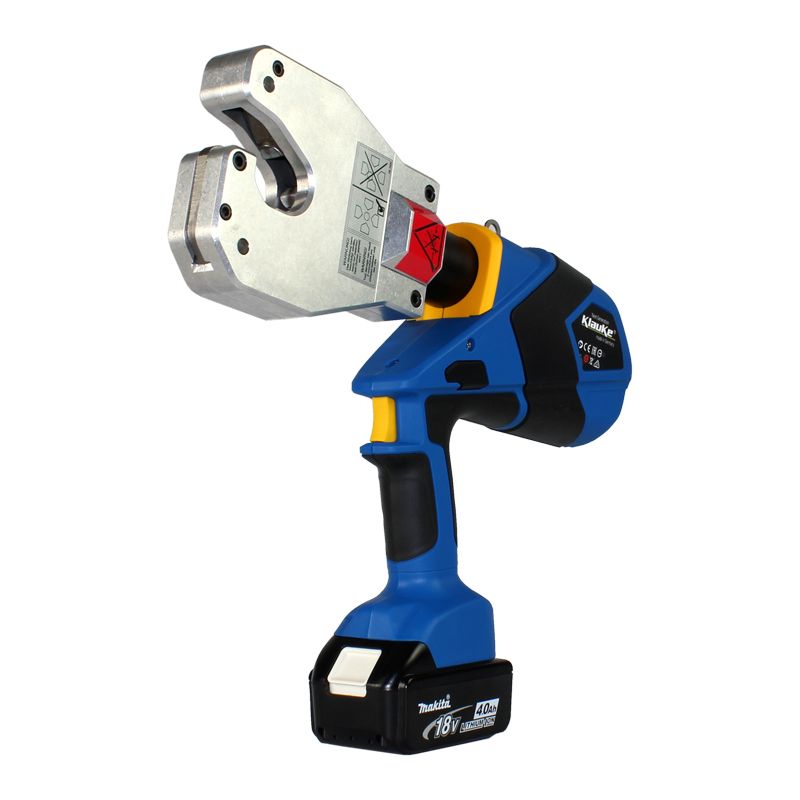

Klauke Battery Powered Hydraulic Crimping Tool 10-240mm
Part No: EK60VPCFM-0 (skin supplied with case)
Part No: EK60VPCFM-K (tool supplied with case inc. charger and 2 x batteries)
Crimps optimised at all times due to the patented centring system
Fast crimp cycles due to Automatic Retraction Stop(ARS)
All tool data can be viewed using on-tool display and i-press app
Features
- Makita battery system
- All data can be easily read via Bluetooth
- Quad-point indent crimping with patented centring system, no crimping dies required
- Open head, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- 2 stage hydraulic system with fast feed and power stroke
- Simple and safe: Automatic retraction when operation is complete
- Battery charge and service display
Specification | |
Crimping Force | 55kN |
Crimping Range | 10-240mmsq |
Crimping Cycle | approx. 3-6 secs |
Number of Crimps | approx 300 at 150mm |
Battery | Makita 18V 4.0Ah, Li-Ion |
Charging Time | 22 min |
Ambient Temperature | -10C up to +40C |
Weight Including battery | 5.25kg |
