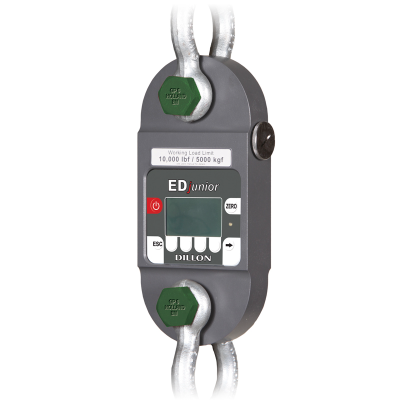

Dynamometer, digital, 5t, 50kN, +/-0.2%, 5kg div, certificate, case, Dillon
Dynamometer, digital, 5t, 50kN, +/-0.2%, 5kg div, certificate, case, Dillon
Code: EDJR-5T
Brand: Dillon
Product Details
Dynamometer, digital, 5t, 50kN, +/-0.2%, 5kg div, certificate, case, Dillon
Brand: Dillon
Product Details
Dynamometer, digital, 5t, 50kN, +/-0.2%, 5kg div, certificate, case, Dillon
Dillon EDJR Series
- Accuracy 0.2% of capacity
- Easy to read wide angle 26mm Back-lit LCD with max hold feature
- Soft key interface with programmable functions
- Rounded edges prevent binding or snagging
- Manufactured from aircraft grade aluminium alloy
- Calibration certificate, manual and batteries included
- Corrosion resistant and supplied with carry case
- 7:1 factor of safety at all capacities
- IP Rating IP55
- Supplied with In-Service Date sticker
| Part No. | Capacity (0.2% Accuracy) | Increments | Dimensions (L x W x D) | Weight with Shackles |
|---|---|---|---|---|
| EDJR-1T | 1T | 1kgf | 312mm x 127mm x 52mm | 1.8kg |
| EDJR-2T | 2T | 2kgf | 269mm x 127mm x 75mm | 3.9kg |
| EDJR-5T | 5T | 5kgf | 289mm x 135mm x 102mm | 6.5kg |
