Sleeves, rubber, class 4, 26", regular, red yellow, curved arm, folded cuff, Salisbury

Sleeves, rubber, class 4, 26", regular, red yellow, curved arm, folded cuff, Salisbury


Code: D4RRY-EC
Brand: Salisbury
Product Details

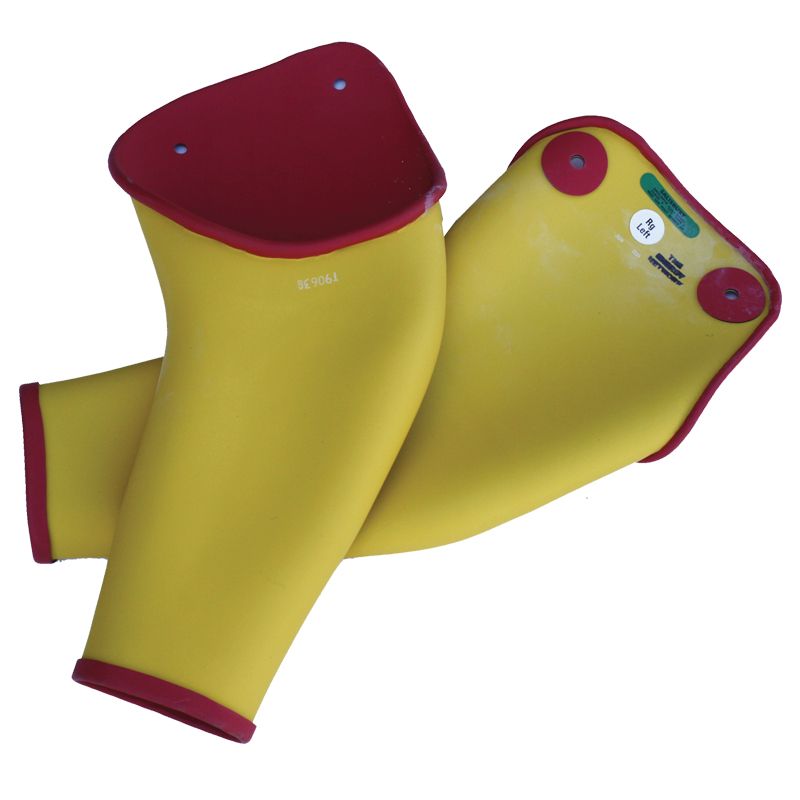

Sleeves, rubber, class 4, 26", regular, red yellow, curved arm, folded cuff, Salisbury


  • Prevents arm contact with energised lines
  • Used in conjunction with rubber insulating gloves
  • Insulates from cuff to shoulder
  • Curved contour arm with reinforced folded cuff
  • Buttons and harness are required, sold separately
  • Manufactured to ASTM D1051
  • Colours - Red/Yellow (red inner/yellow outer) or Yellow/Black (yellow inner/black outer)
  • Made from Natural Rubber
  • Size & Class identification label on sleeves
Part # Size Colour ASTM Class ASTM Class Label Colour Length Max Working Voltage Proof Test Voltage
D2SRY-EC Small Red/Yellow 2 Yellow 24" AC:17kV-DC:25.5kV AC:20kV-DC:50kV
D2RRY-EC Regular Red/Yellow 2 Yellow 26" AC:17kV-DC:25.5kV AC:20kV-DC:50kV
D2LRY-EC Large Red/Yellow 2 Yellow 28" AC:17kV-DC:25.5kV AC:20kV-DC:50kV
D2XLRY-EC Extra Large Red/Yellow 2 Yellow 29.5" AC:17kV-DC:25.5kV AC:20kV-DC:50kV


Part # Size Colour ASTM Class ASTM Class Label Colour Length Max Working Voltage Proof Test Voltage
D3SRY-EC Small Red/Yellow 3 Green 24" AC:26.5kV-DC:39.75kV AC:30kV-DC:60kV
D3RRY-EC Regular Red/Yellow 3 Green 26" AC:26.5kV-DC:39.75kV AC:30kV-DC:60kV
D3LRY-EC Large Red/Yellow 3 Green 28" AC:26.5kV-DC:39.75kV AC:30kV-DC:60kV
D3XLRY-EC Extra Large Red/Yellow 3 Green 29..5" AC:26.5kV-DC:39.75kV AC:30kV-DC:60kV


Part # Size Colour ASTM Class ASTM Class Label Colour Length Max Working Voltage Proof Test Voltage
D4SRY-EC Small Red/Yellow 4 Orange 24" AC:36kV-DC:54kV AC:40kV-DC:70kV
D4RRY-EC Regular Red/Yellow 4 Orange 26" AC:36kV-DC:54kV AC:40kV-DC:70kV
D4LRY-EC Large Red/Yellow 4 Orange 28" AC:36kV-DC:54kV AC:40kV-DC:70kV
D4XLRY-EC Extra Large Red/Yellow 4 Orange 29.5" AC:36kV-DC:54kV AC:40kV-DC:70kV

Sleeve Size Selection

Sleeves should be selected to fit the arm comfortably, covering from the top of the shoulder to inside the top of the glove. Regular size sleeves are the shortest and have the smallest arm and wrist openings. To minimise the possibility of the sleeves pushing gloves off the hand, size the sleeve to the shortest length possible while maintaining complete coverage to the shoulder.

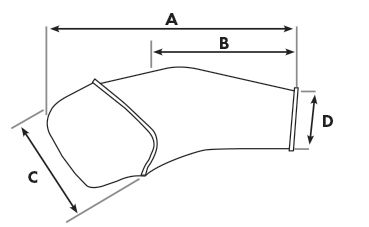

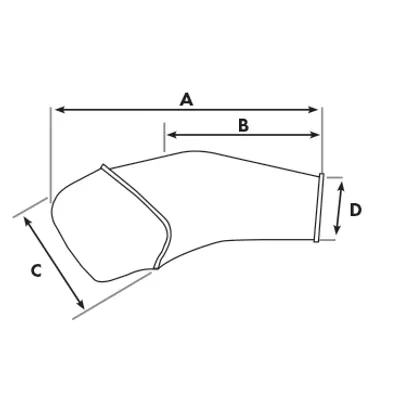

Size Length Dimensions: A/B/C/D
Small 24inch / 616mm 616/384/317/146mm
Regular 26inch / 673mm 673/394/311/140mm
Large 28inch / 705mm 705/406/327/175mm
Extra Large 29.5inch / 749mm 749/445/327/178mm
