Adaptor, kelly bar, 75x75mm 6 hole, 5 1/4" bolt circle, suit C303-0069HD

Ten Group // Electrical Power Line Materials // Anchors and Driving Equipment // Screw Anchors & Driving Equipment // Adaptor, kelly bar, 75x75mm 6 hole, 5 1/4" bolt circle, suit C303-0069HD
Adaptor, kelly bar, 75x75mm 6 hole, 5 1/4" bolt circle, suit C303-0069HD


Code: C303-0075
Brand: Chance
Product Details
Adaptor, kelly bar, 75x75mm 6 hole, 5 1/4" bolt circle, suit C303-0069HD

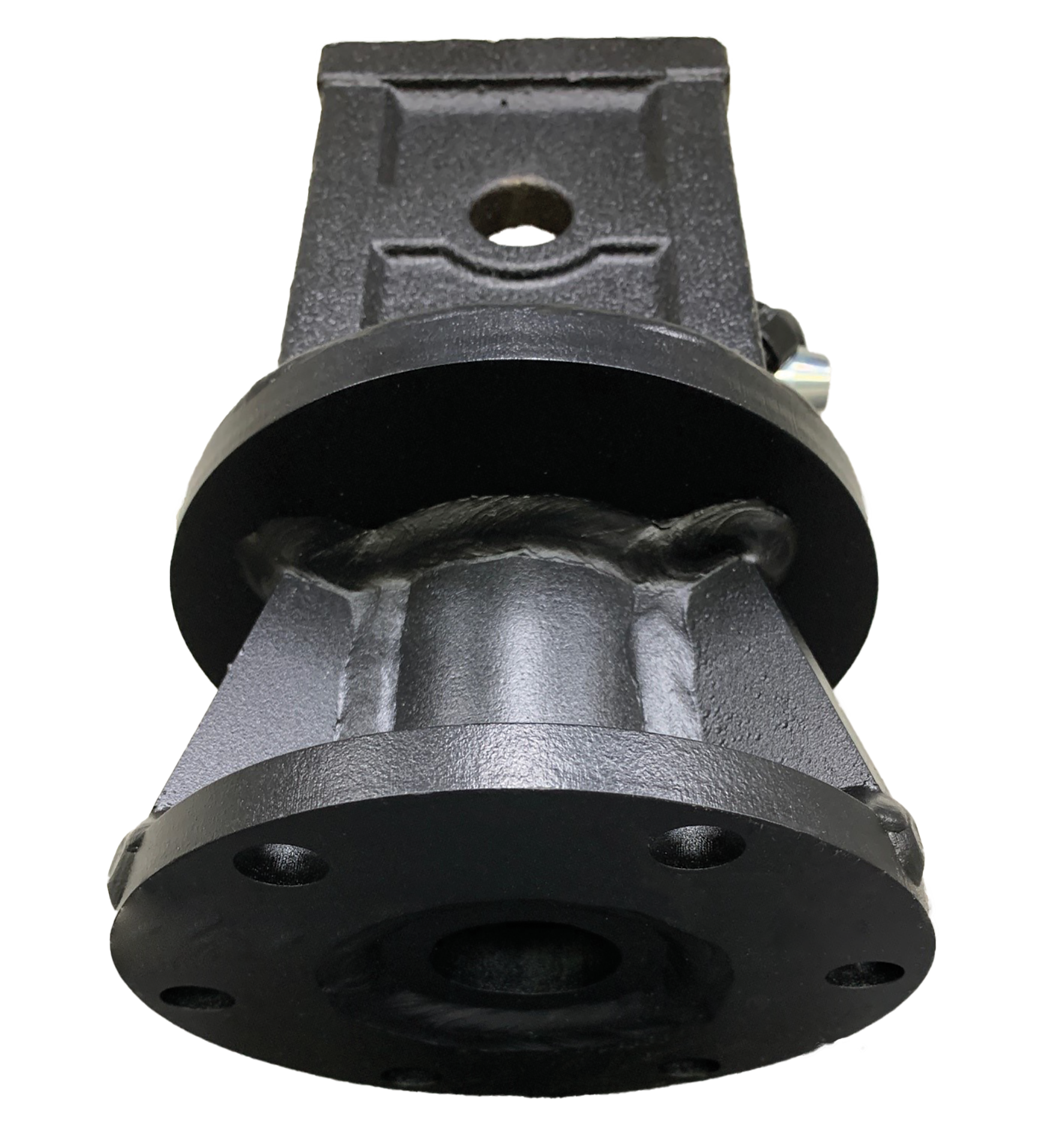

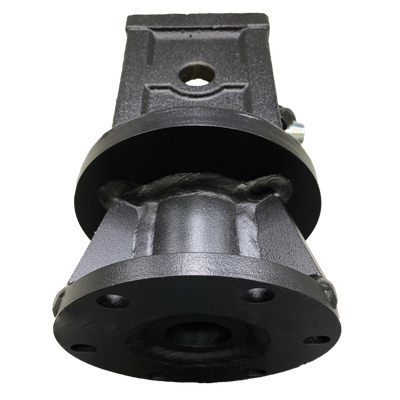

Kelly Bar Adaptor

Engages the entire installation assembly to the torque motor output shaft of the Lifter Borer's driving equipment (typically 75mm x 75mm in Australia) A torque limiting device can be installed between the Kelly Bar Adapter and Locking Dog assembly to monitor and control maximum torque values to prevent anchor failure

Partner with a company who supplies a complete range of Anchors, Anchor Rods, Accessories and Installation equipment

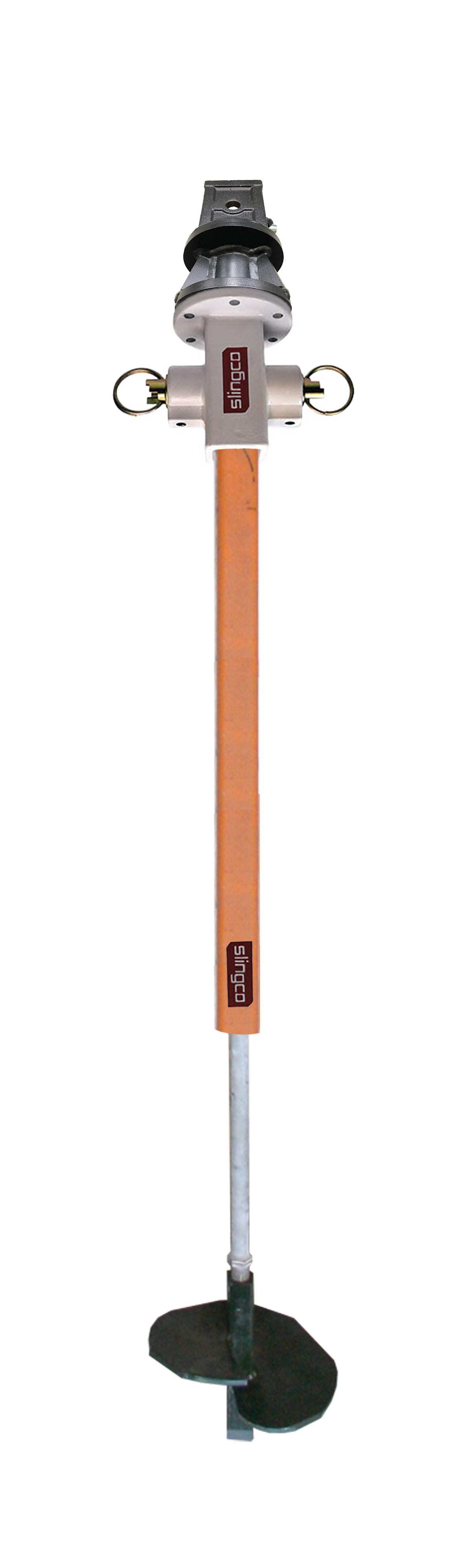

Slingco’s anchoring equipment is designed to work with the Kelly bar of the lifter borer truck by transferring the torque from the drive motor to the screw anchor. The installation equipment includes common size kelly bar adapters, drive wrench locking dogs and drive wrenches. Sling-co’s drive wrench assembly is rated for 10,000 foot pounds of torque allowing for anchor installation in the toughest of environments.

ORDERING INFORMATION
Part No.DescriptionDetails
C303-0075Kelly Bar AdapterSuit 75mm x 75mm Drive - 6 hole configuration
SAE10425Locking Dog Assembly (Formerly C303-0069HD)For 133mm 5¼" Bolt Circle - 6 hole configuration
SAE09639Drive End Wrench (Standard) (Formerly C102-1583)2.1m OAL, Used for both 35mm (1⅜") Square Shaft & 57mm (2¼") Socket Power Hub Anchors
SAE08666Drive End Wrench (Hybrid) (Formerly C303-1064)2.1m OAL, Used for both 38mm (1½") Square Shaft Swamp Anchors & 63mm (2½") Socket Power Hub Anchors
