Winch, electric, 230v, 53.38kN /5454kg, capstan unit, foot switch, iToolCo

Ten Group // MACHINERY // Hydraulic Machines // Battery Winch // Winch, electric, 230v, 53.38kN /5454kg, capstan unit, foot switch, iToolCo

Code: C12K-230
Brand: iToolco
Product Details
Winch, electric, 230v, 53.38kN /5454kg, capstan unit, foot switch, iToolCo

Electric Capstan Winch - 5454kg/53.38kN - iTOOLco

Part No. C12K-230

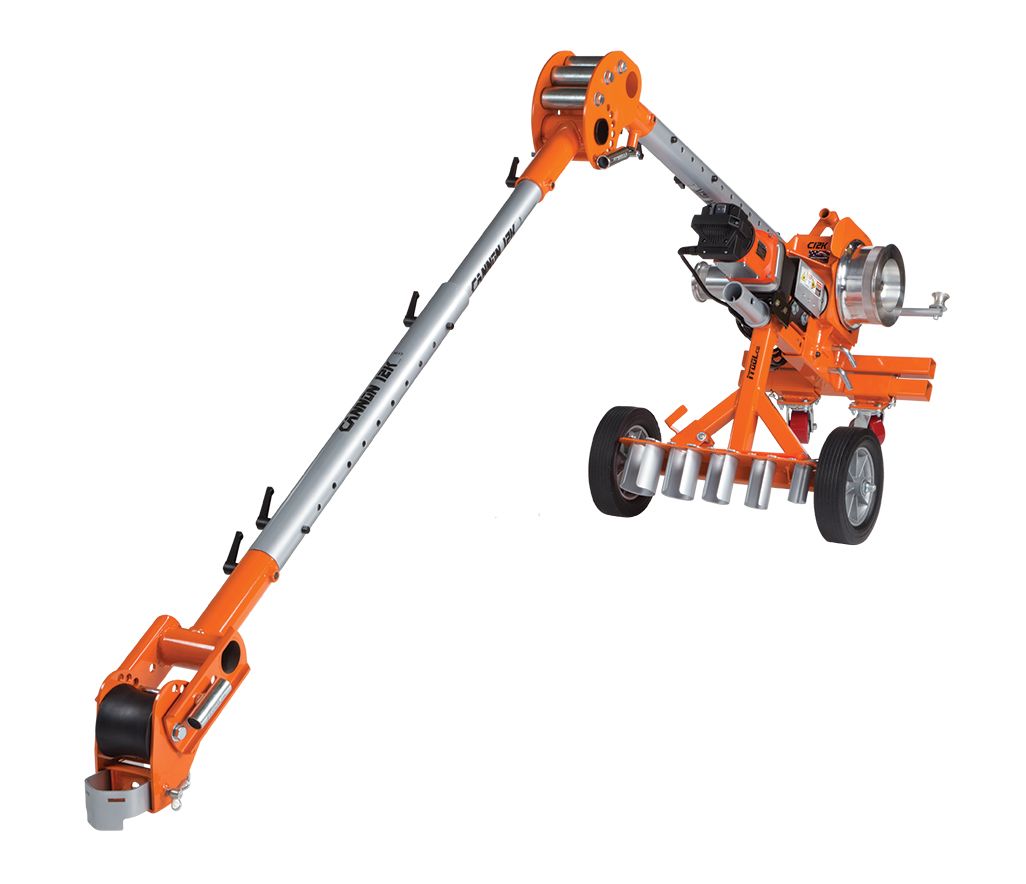

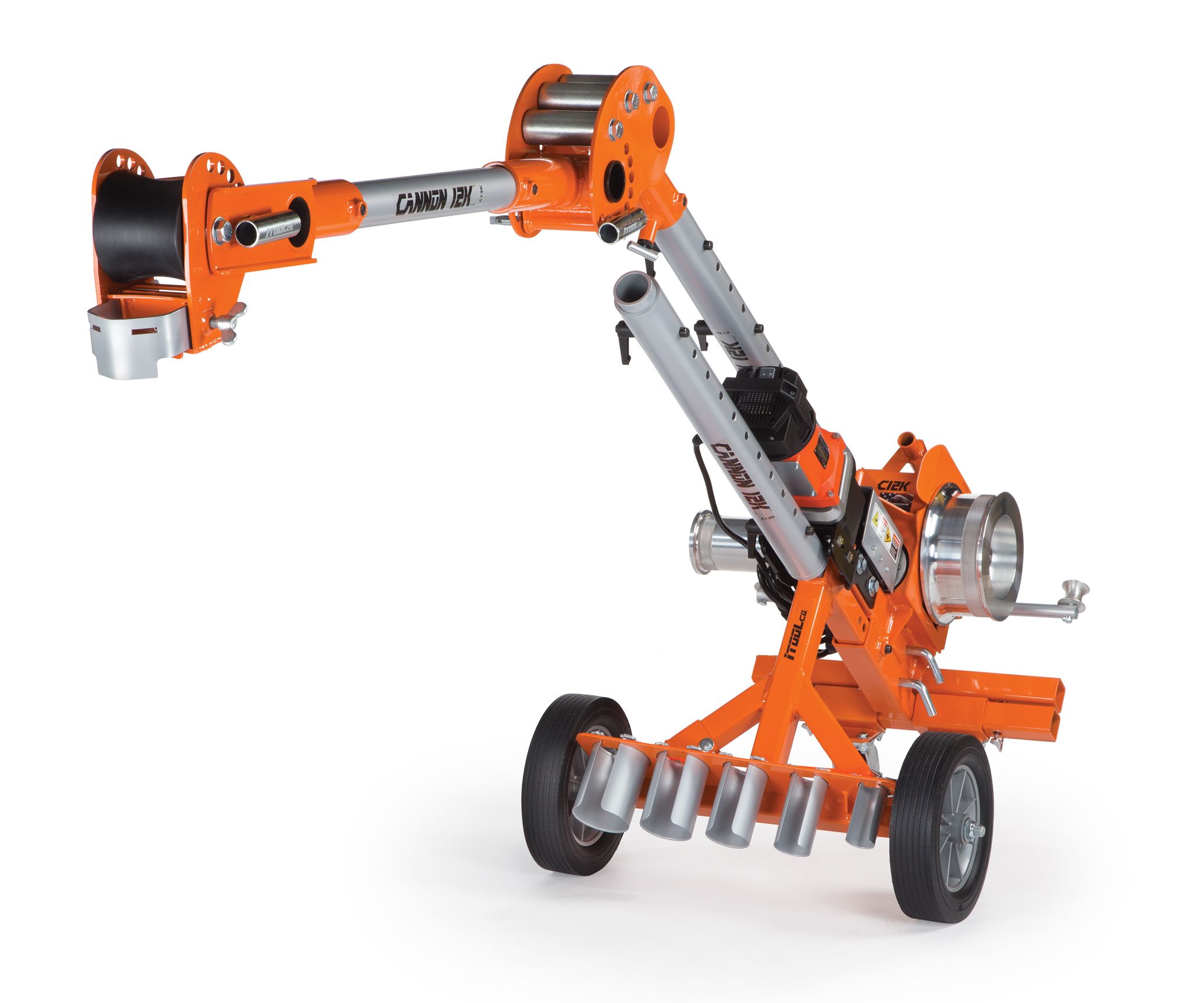

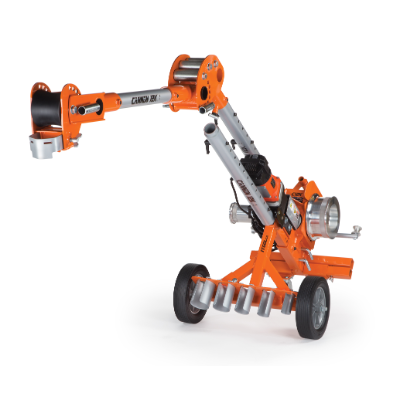

The fully self-contained, compact Cannon 12K™ wire puller with 6-speed reversible motor.

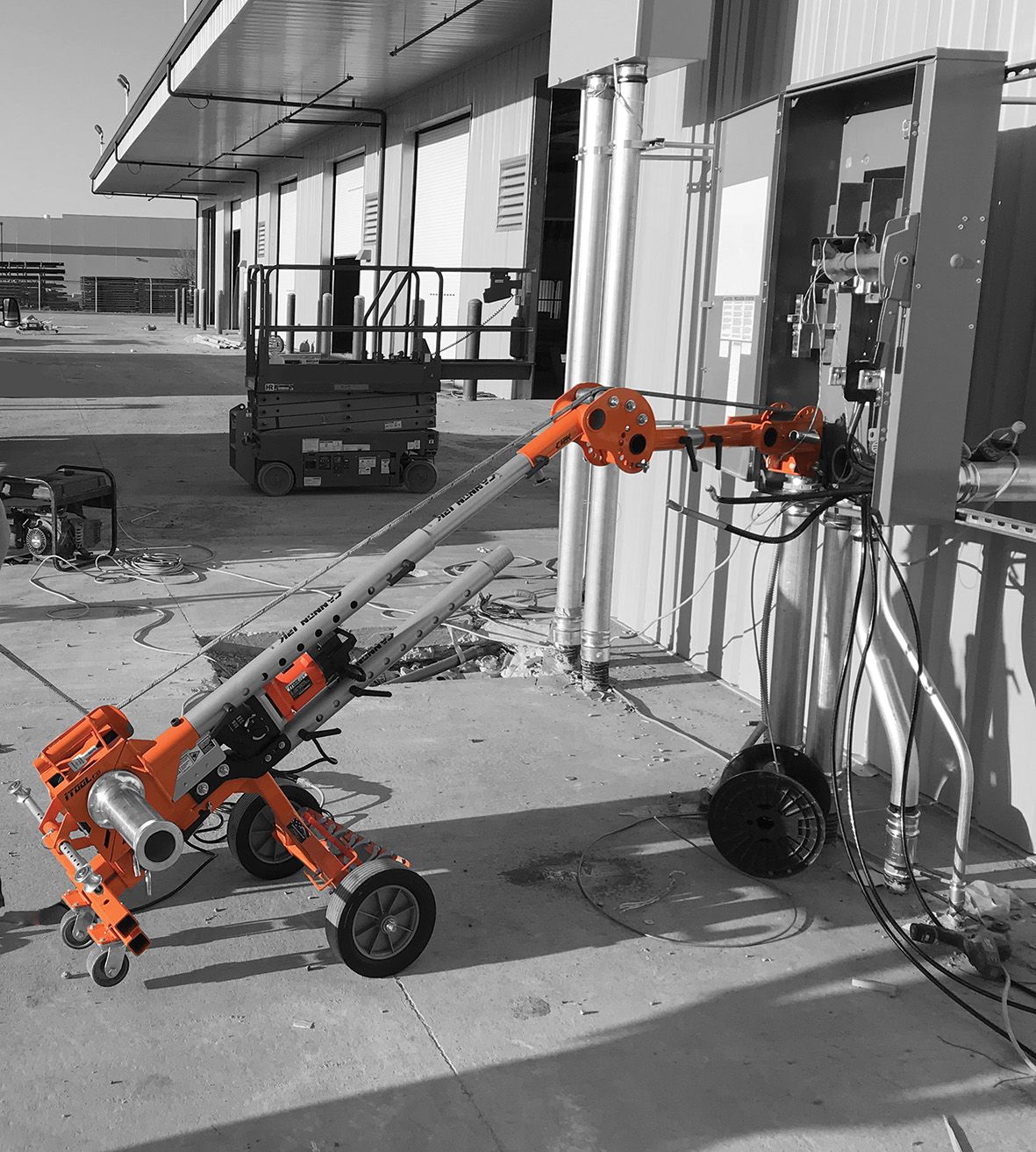

Designed specifically for easy set up to meet job site demands.

No large storage box of parts needed, all parts store on the puller.

When extra extensions are used, the wire puller is capable of pulling out 3.9m of wire from the conduit opening.

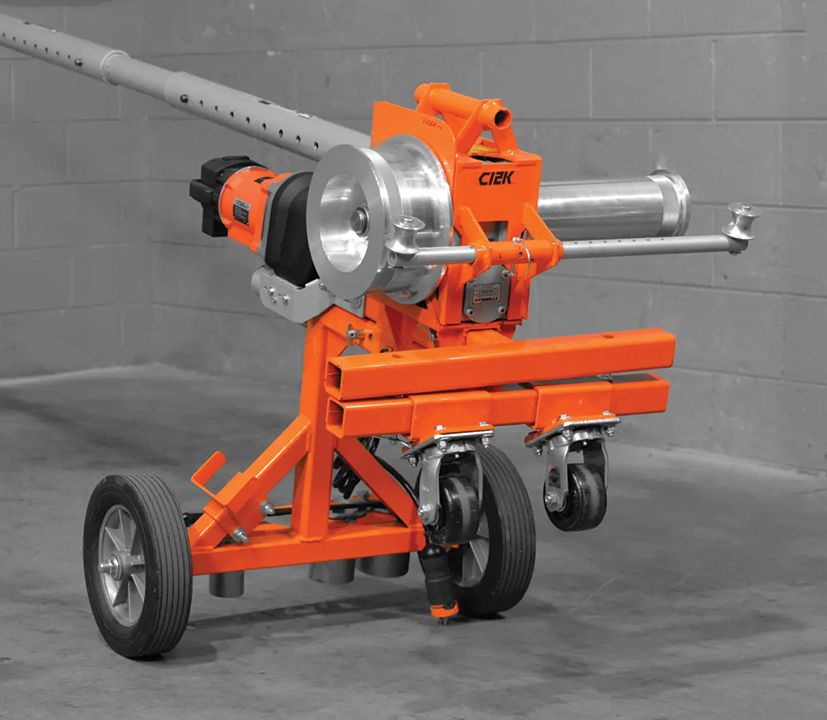

iTOOLcoʼs Cannon 12K™ pulls at speeds up to 11m per minute.

Part No	Description	Dimensions Collapsed (mm)	Powered by	Wt (kg)
C12K-230	Winch, Conduit Adaptors, Rack & 230V Motor	1730 (L) x 762 (W) x 1450 (H)	230V Moter	183

Pull Speed - Small Capstan	Pull Speed - Large Capstan	Max Pulling Capacity (kg)	Pull at Max Speed (kg)
Up to 4.5m/pm - 5450kg	Up to 11m/pm -2720kg	5450	2720
