Tension meter, QuickCheck "T", blue-tooth, 45kN, 4.75-25.4mm, 16 tower cals, test bar,Dillon
Tension meter, QuickCheck "T", blue-tooth, 45kN, 4.75-25.4mm, 16 tower cals, test bar,Dillon
Code: AWT05-100370
Brand: Dillon
Product Details
Tension meter, QuickCheck "T", blue-tooth, 45kN, 4.75-25.4mm, 16 tower cals, test bar,Dillon
Brand: Dillon
Product Details
Tension meter, QuickCheck "T", blue-tooth, 45kN, 4.75-25.4mm, 16 tower cals, test bar,Dillon

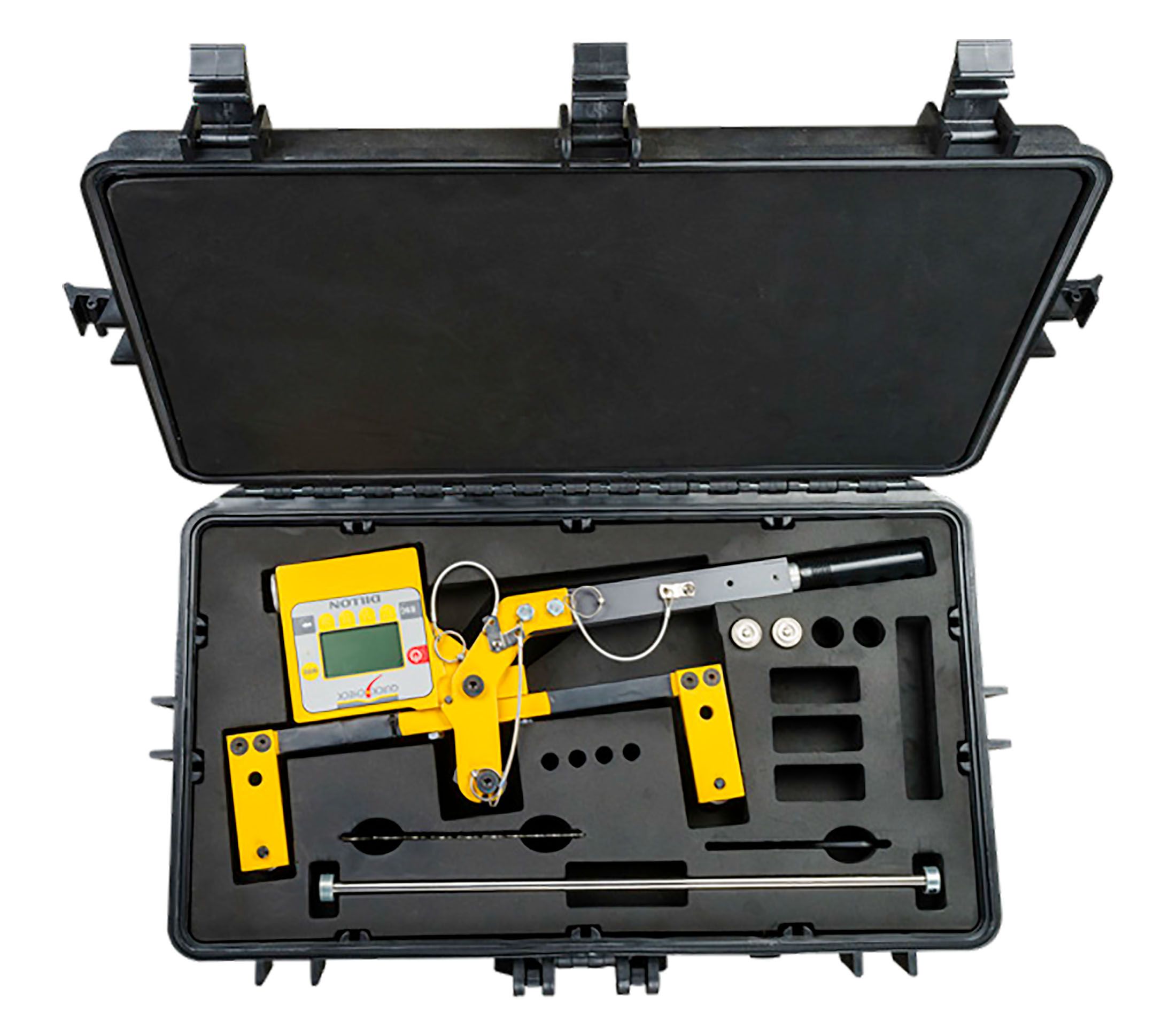

Dillon Quick Check "T" Tension Meter
The Dillon Quick Check-T Tension Meter makes a difference. It quickly measures tension in cable tower guy wires, overhead lines and road barrier cables. It reduces time on the job site by not having to change sheaves, and the need to thumb through charts to figure out target tensions. This unit also reduces time off of the job site by having automatic site form completion, with image, and direct complete reports.
Features
- Bluetooth® enabled
- Custom mobile app
- Multi-wire single sheave
- Calibration check rod
- Automatic report generation with photos
- Automatic target tension calculations
- Ability to capture pre and post tension readings
- Inbuilt image capture
| Part No | AWT05-100370 | QC-T |
|---|---|---|
| No. of calibrations | 16 Tower Guy + Test Rod | 1 x Test Rod |
| Calibrations (") | (1x7) 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8 (1x19) 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1 |
1 only, for test rod. Specify wire sizes |
| Tension capacities (kN/kg) | 45/4500 | |
| Wire sizes mm (") | 4.75 to 25.4 (3/16 to 1) | |
| Accuracy | + 3% instrument capacity (calibrated to specific wire size and type) | |
| Communication | Bluetooth | |
| Display | Dot-graphic LCD display supports full text and 25mm high digits | |
| Data Export | Via mobile app | |
| Sheave range | One sheave, two positions | |
| Wire calibrations | Up to 20 | |
| Environment protection | Suitable for continued outdoor use | |
| Operating Temp range degC | -20 to +70 | |
| Tension units of measure | Pound-force, Kilogram force, Newtons | |
| Resolution | Configurable low/med/high (5000 resolutions) | |
| Size (mm) | 220 x 610 x 90 | |
| Weight (kg) | 5 | |
| Recalibration | Every 12 months. More frequently with heavy use | |
