Dynamometer, analogue, 2T, 20kN, 500N div, 135mmL x, 65mmW, eye-eye, NGK

Code: AS-20L
Brand: NGK
Product Details
Dynamometer, analogue, 2T, 20kN, 500N div, 135mmL x, 65mmW, eye-eye, NGK

Product Features and Benefits
Documentation

Nagaki Mechanical Dynamometers - A Series

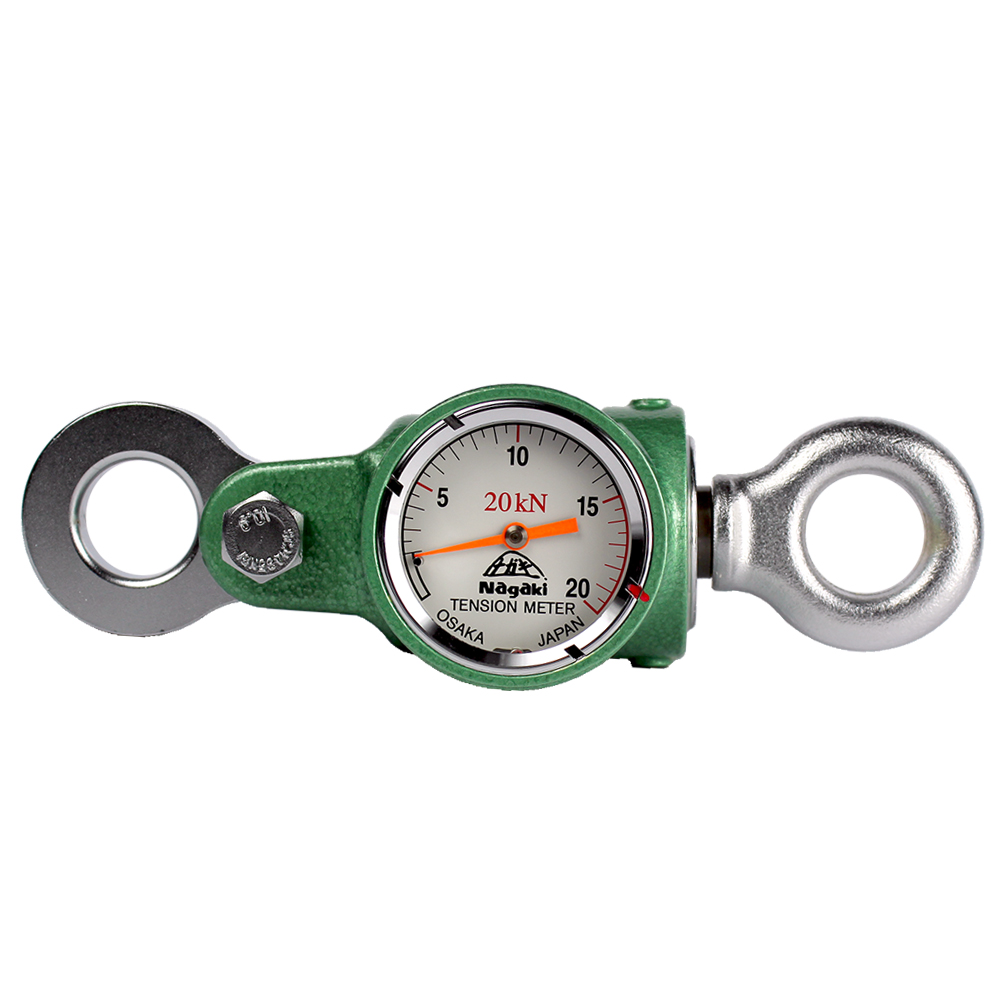

Used to measure tension in wires, belts and cables, the NGK tension meter features two pulling eyes, connected to an analog indicator. This allows the user to accurately monitor tension and adjust equipment and loads accordingly.

NGK Dynamometers are lightweight, compact and plated to resist corrosion. All models feature a large face dial for easy reading of measurements.

Features

Made in Japan from Japanese components
Precise measurement of tension and loads
Kilogram/force (kN) dial display
Accuracy ±3%
Plated to resist corrosion

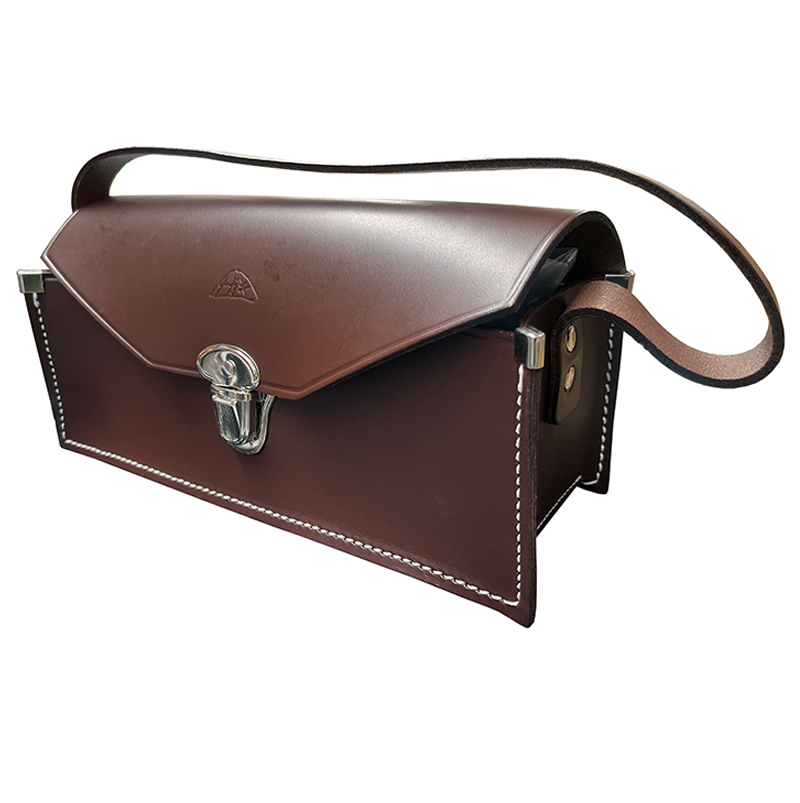

Leather Storage case included
Supplied with In-Service Date sticker

Part No.	Capacity (kN/T)	Increments) (N)	Attachments	Length (mm)	Width (mm)	Eye (mm)	Wt (kg)
AS-3	3/0.3	50	Eye-Clevis	110	65	16	0.7
AS-10L	10/1	200	Eye-Eye**	135	65	28	1.2
AS-20L	20/2	500	Eye-Eye**	135	65	28	1.6
AS-30	30/3	500	Eye-Eye	150	80	28	2
AS-50	50/5	1000	Eye-Eye	260	95	28	3
AS-100	100/10	2000	Eye-Eye	360	100	38	7.2

**1 & 2 Tonne versions also available with Eye-Clevis attachments. Use Part No’s AS-10 & AS-20
