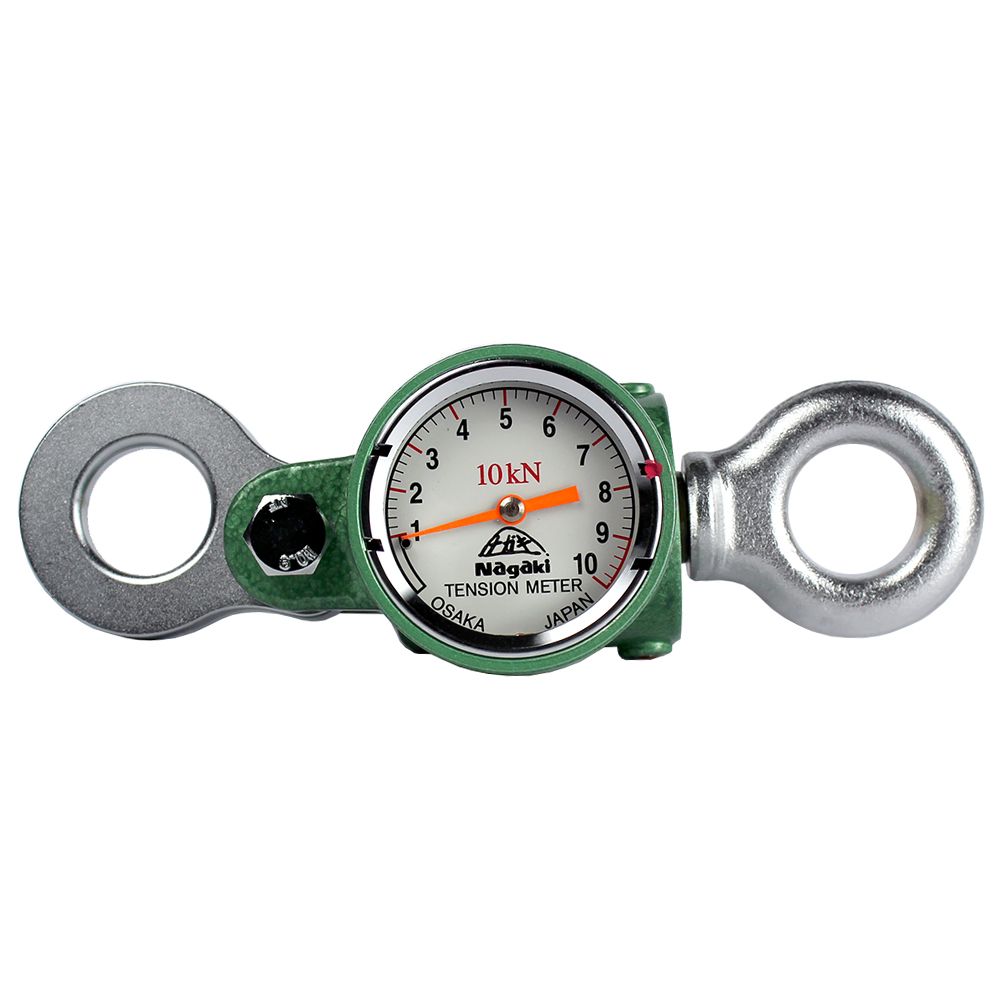

Dynamometer, analogue, 1T, 10kN, 200N div, 135mmL x 65mmW, eye-eye, NGK
Dynamometer, analogue, 1T, 10kN, 200N div, 135mmL x 65mmW, eye-eye, NGK
Code: AS-10L
Brand: NGK
Product Details
Dynamometer, analogue, 1T, 10kN, 200N div, 135mmL x 65mmW, eye-eye, NGK
Brand: NGK
Product Details
Dynamometer, analogue, 1T, 10kN, 200N div, 135mmL x 65mmW, eye-eye, NGK
Nagaki Mechanical Dynamometers - A Series
Used to measure tension in wires, belts and cables, the NGK tension meter features two pulling eyes, connected to an analog indicator. This allows the user to accurately monitor tension and adjust equipment and loads accordingly.
NGK Dynamometers are lightweight, compact and plated to resist corrosion. All models feature a large face dial for easy reading of measurements.
Features
- Made in Japan from Japanese components
- Precise measurement of tension and loads
- Kilogram/force (kN) dial display
- Accuracy ±3%
- Plated to resist corrosion

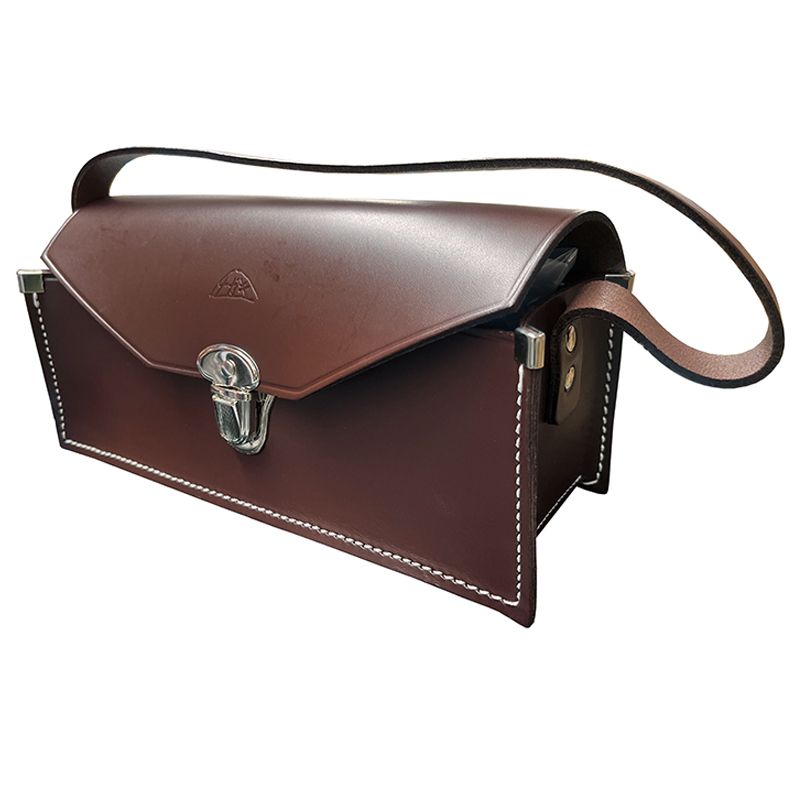

- Leather Storage case included
- Supplied with In-Service Date sticker
| Part No. | Capacity (kN/T) | Increments) (N) | Attachments | Length (mm) | Width (mm) | Eye (mm) | Wt (kg) |
|---|---|---|---|---|---|---|---|
| AS-3 | 3/0.3 | 50 | Eye-Clevis | 110 | 65 | 16 | 0.7 |
| AS-10L | 10/1 | 200 | Eye-Eye** | 135 | 65 | 28 | 1.2 |
| AS-20L | 20/2 | 500 | Eye-Eye** | 135 | 65 | 28 | 1.6 |
| AS-30 | 30/3 | 500 | Eye-Eye | 150 | 80 | 28 | 2 |
| AS-50 | 50/5 | 1000 | Eye-Eye | 260 | 95 | 28 | 3 |
| AS-100 | 100/10 | 2000 | Eye-Eye | 360 | 100 | 38 | 7.2 |
**1 & 2 Tonne versions also available with Eye-Clevis attachments. Use Part No’s AS-10 & AS-20
