Part, stick, telescopic, triangular, MV series, section 6, w/ lock assembly, Hastings


Code: A20357
Brand: Hastings Fiberglass Products
Product Details

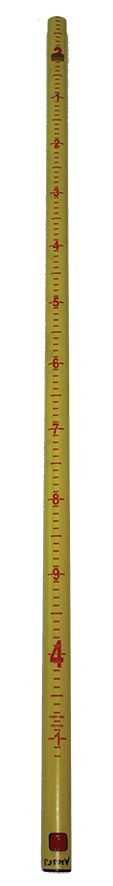

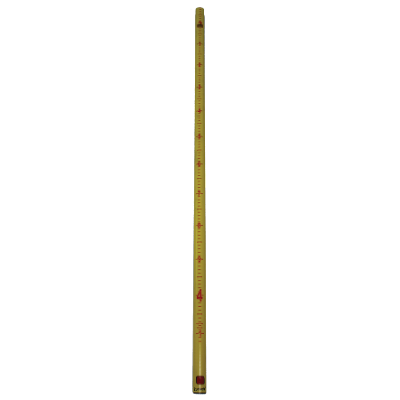

Part, stick, telescopic, triangular, MV series, section 6, w/ lock assembly, Hastings

Telescopc Stick replacement parts

  • Refer to below MV & HV Matrix for replacement part numbers
  • No tools are required for replacing as sections sold complete with lock assembly
  • Order base cap separately if replacing base section

    • Replacement section Ordering information

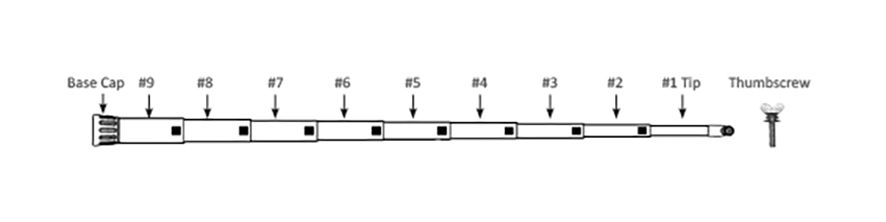

    Part No.Base Cap#9#8#7#6#5#4#3#2#1 Tip SectionThumbscrew
    MV-25P18029---A20348A20356A20355A20354A20353A20352P16055
    MV-25-QP18029---A20348A20356A20355A20354A20353A20462Not Required
    MV-30P18030--A20349A20357A20356A20355A20354A20353A20352P16055
    MV-30-QP18030--A20349A20357A20356A20355A20354A20353A20462Not Required
    MV-35P18031-A20350A20358A20357A20356A20355A20354A20353A20352P16055
    MV-35-QP18031-A20350A20358A20357A20356A20355A20354A20353A20462Not Required
    MV-40P18026A20263A20359A20358A20357A20356A20355A20354A20353A20352P16055
    MV-40-QP18026A20263A20359A20358A20357A20356A20355A20354A20353A20462Not Required
