Ampstik, ammeter, 64mm jaw, 5000A, 500kV, stores 4 readings, case, Sensorlink

Ten Group // TEST & MEASUREMENT // Ammeters and Ohmeters // Ampsticks // Ampstik, ammeter, 64mm jaw, 5000A, 500kV, stores 4 readings, case, Sensorlink
Ampstik, ammeter, 64mm jaw, 5000A, 500kV, stores 4 readings, case, Sensorlink


Code: 8-020-XTPLUS
Brand: Catu
Product Details
Ampstik, ammeter, 64mm jaw, 5000A, 500kV, stores 4 readings, case, Sensorlink

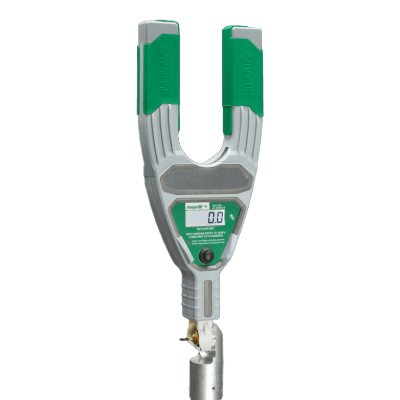

Ampstik Plus - Sensorlink

Part No. 8-020-XTPLUS

The Ampstik+ provides reliable measurements, giving line personnel the confidence to make immediate decisions while working and troubleshooting in the field

The unit measures in every electric utility setting with a linear current sensor to accurately measure 1A to 5000A, while in voltage environments up to 500kV. The opening of the amp sensor is electronically closed, while external currents are electronically rejected. This design enables the user to measure an individual conductor within close proximity to adjacent conductors without interference errors

  • Sample and hold four amp readings
  • Open CT rejects stray magnetic fields
  • Open Jaw for Easy slip on and off the conductor
  • No position sensitivity
  • Back-lit LCD for low-light environments
  • Overhead and underground use
