Super "U" Arm w/ Large Hanger Loop 6" x 6" Cross Arms 400lbs Max Working Load
Brand: Hastings Fiberglass Products
Product Details
Super "U" Arm w/ Large Hanger Loop 6" x 6" Cross Arms 400lbs Max Working Load

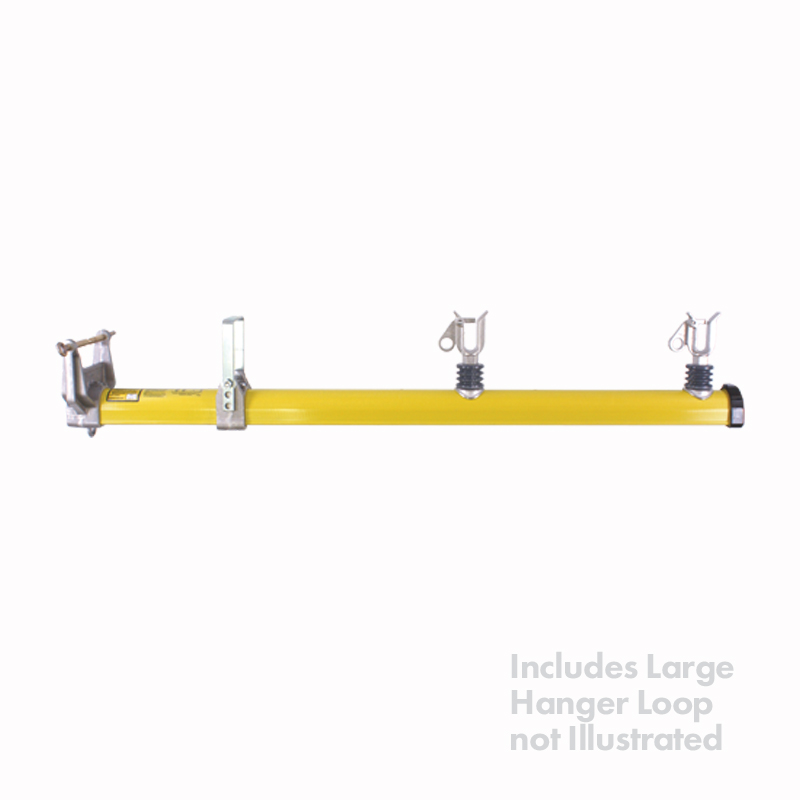

Super 'U' Fibreglass Extension Arms, Hastings
- Used for temporary support, reconductoring and line maintenance
- Great strength and durability “U” shape design
- Interchangeable hanger loop kits available for various size X-Arms
- Super “U” Arms include insulators
- Tested per OSHA & ASTM F-711
- FRP laminate resists weathering
| Part # | Description | Rating Ø – Ø | Wire Holders | Max Conductor | WLL | Max X-Arm Size | Weight |
|---|---|---|---|---|---|---|---|
| 7456 | Standard w/Large Hanger Loop | 35kV | 2 | 27mm | 181kg | 150x150mm | 9.3kg |
Accessories and Replacement Parts
| 7551 | Conductor Holder - Standard | - | 1 | 27mm | 90kg | - | 0.5kg |
| 7552 | Conductor Holder – Large Capacity | - | 1 | 67mm | 90kg | - | 0.7kg |
| A30008 | Insulator | - | - | - | - | - | 0.5kg |
