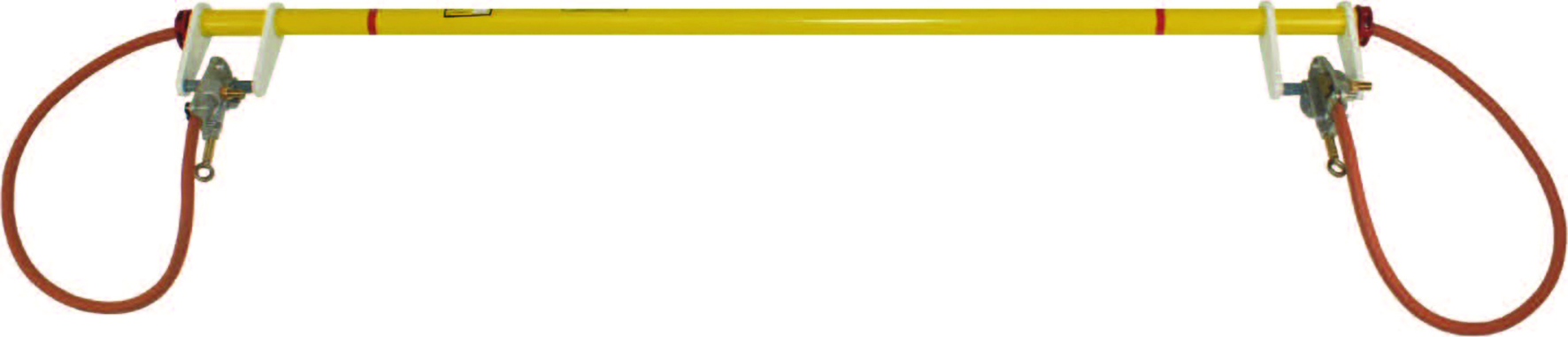

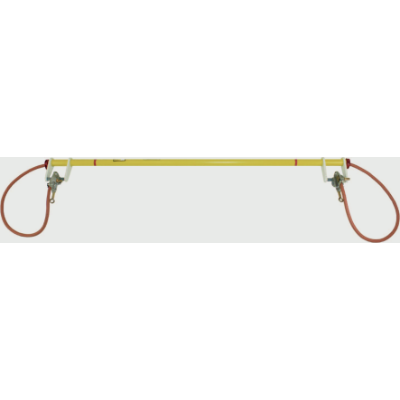

Jumper, HV, 15-69kV, 300A, 4.26m, 1.8m insulated tube, shotgun clamps, Hastings


Code: 6752-3
Brand: Hastings Fiberglass Products
Product Details
Jumper, HV, 15-69kV, 300A, 4.26m, 1.8m insulated tube, shotgun clamps, Hastings

Jumpers Insulated/Protected - 15-69kV

  • 15kV rated cable is encapsulated in a 44mm OD fibreglass tube. The fibreglass tube gives additional insulation and mechanical protection for jumpering switch gear, reclosers and cutting in double dead-ends.
  • Cable can be removed for inspection and replacement

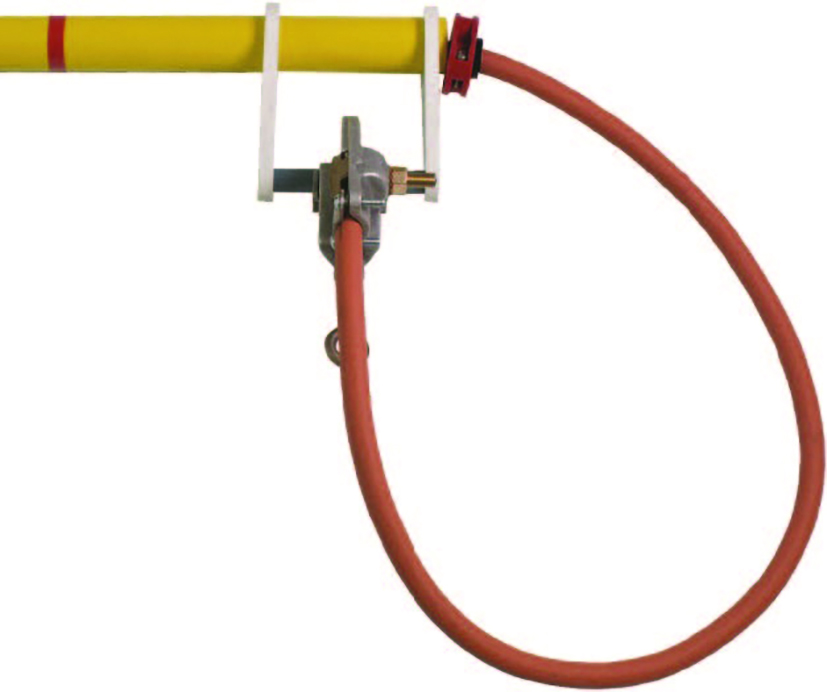

  • Fibreglass hanger brackets allow clamps to be secured for installation and removal of jumper
  • Can be installed on wire sizes from 3mm diameter up to and including 32mm diameter
  • Ratings - 69kV rating applies to area on fibreglass tube between red bands which are from ends of the tube. 15kV ratings apply outside the red bands. Ratings apply for accidental brush contact only
  • Other cable and Tube lengths available. Contact TEN for further information
    • Part No.DescriptionSize AWG (Amps)Wt (kg)
    6752-34.26m Cable - 1.8m Tube2/0 (300)13.6
    6752-74.87m Cable - 2.4m Tube2/0 (300)14.5
