Arm temp X-arm 6' (1800mm) extension w / 2 removable wire holders & insulators

Ten Group // FIBREGLASS STICKS & ACCESSORIES // Conductor Supports, Lifts & Arms // Extension Arms // Arm temp X-arm 6' (1800mm) extension w / 2 removable wire holders & insulators
Arm temp X-arm 6' (1800mm) extension w / 2 removable wire holders & insulators


Code: 5016-1
Brand: Hastings Fiberglass Products
Product Details
Arm temp X-arm 6' (1800mm) extension w / 2 removable wire holders & insulators

Hastings Standard Fibreglass Extension Arms

  • Used for temporary support, reconductoring and line maintenance
  • Can be used for obtaining clearances in congested areas
  • Easy to install
  • Adjustable conductor holders
  • Foam filled fibreglass shaft
  • Tested per OSHA & ASTM F-711
  • Eye bolts and nuts are silicone bronze to resist seizing
Part # Arm Length Number of Conductor Holders WLL per Conductor Holder Weight
5001 1.52m 1 68kg 5.2kg

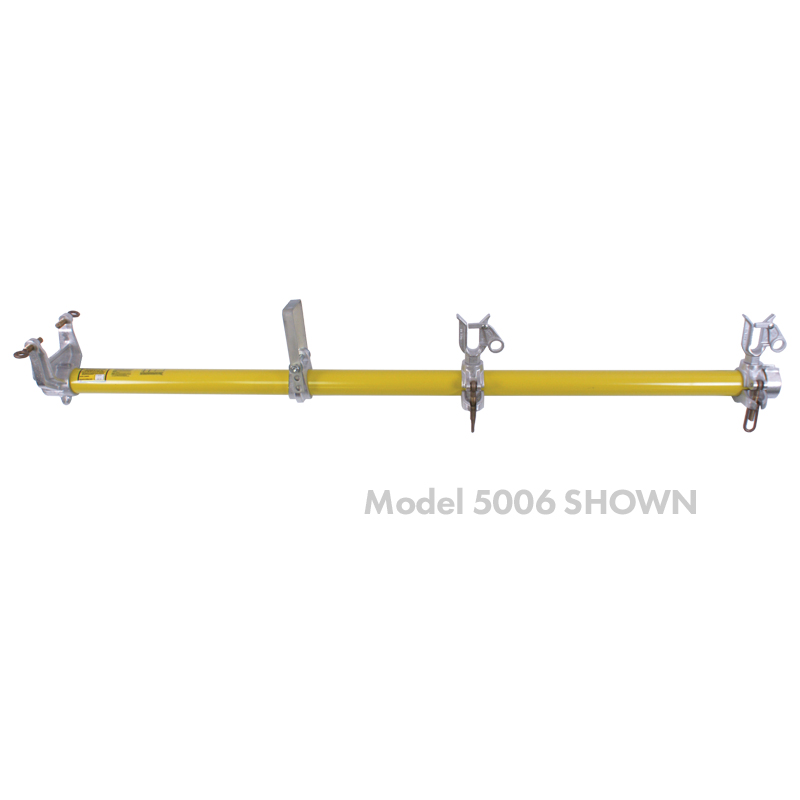

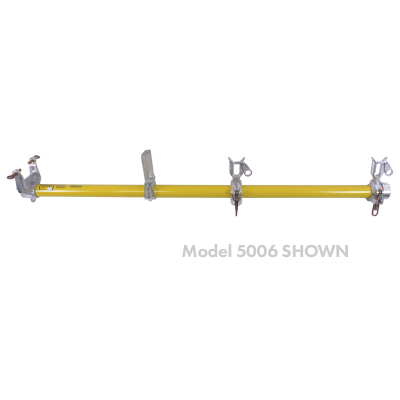

5006 1.82m 2 68kg 6.6kg
5016 1.82m 2 68kg 6.7kg
5016-1 1.82m 2 68kg 7.0kg
