Arm Extension 6' (1800mm) two Conductor Holders Lge Bracket
Arm Extension 6' (1800mm) two Conductor Holders Lge Bracket
Code: 5016
Brand: Hastings Fiberglass Products
Product Details

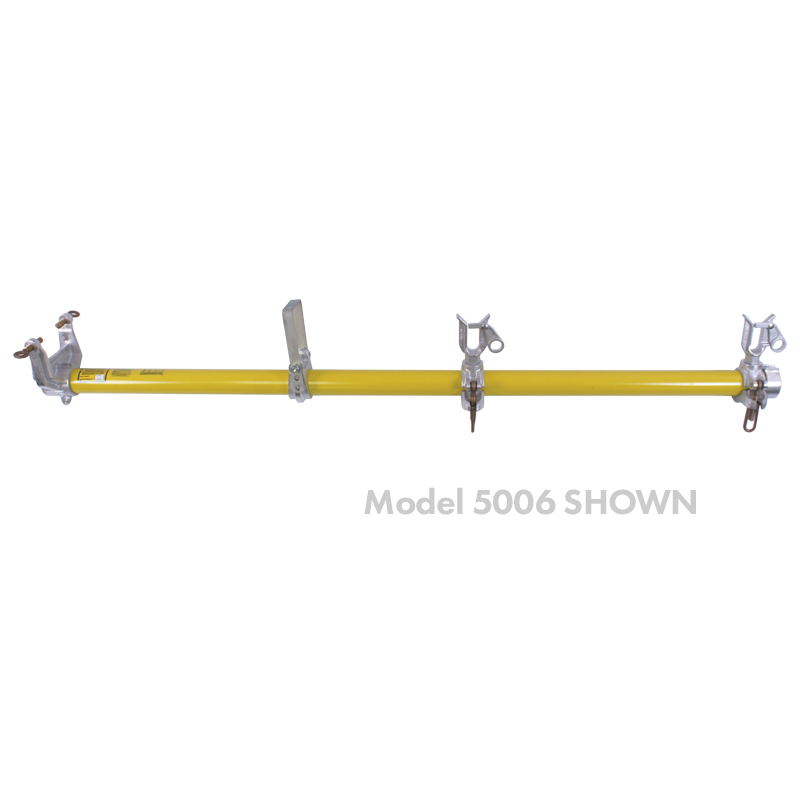

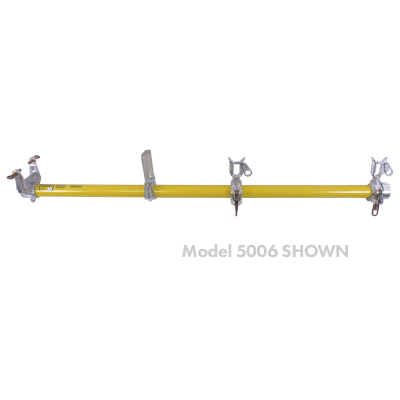

Arm Extension 6' (1800mm) two Conductor Holders Lge Bracket
Brand: Hastings Fiberglass Products
Product Details
Arm Extension 6' (1800mm) two Conductor Holders Lge Bracket
Hastings Standard Fibreglass Extension Arms
- Used for temporary support, reconductoring and line maintenance
- Can be used for obtaining clearances in congested areas
- Easy to install
- Adjustable conductor holders
- Foam filled fibreglass shaft
- Tested per OSHA & ASTM F-711
- Eye bolts and nuts are silicone bronze to resist seizing
| Part # | Arm Length | Number of Conductor Holders | WLL per Conductor Holder | Weight |
|---|---|---|---|---|
| 5001 | 1.52m | 1 | 68kg | 5.2kg |
| 5006 | 1.82m | 2 | 68kg | 6.6kg |
| 5016 | 1.82m | 2 | 68kg | 6.7kg |
| 5016-1 | 1.82m | 2 | 68kg | 7.0kg |
