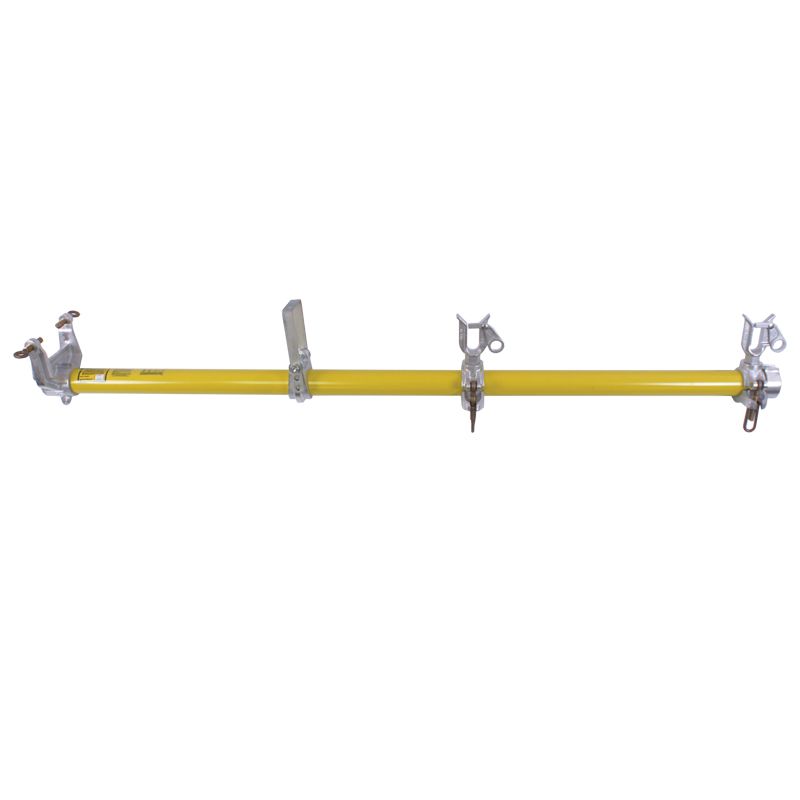

Stick, crossarm extension, max 105x170mm, 2 conductor holder, 63x1800mm, 2.5"x6', Hastings


Code: 5006
Brand: Hastings Fiberglass Products
Product Details
Stick, crossarm extension, max 105x170mm, 2 conductor holder, 63x1800mm, 2.5"x6', Hastings

Hastings Standard Fibreglass Extension Arms

  • Used for temporary support, reconductoring and line maintenance
  • Can be used for obtaining clearances in congested areas
  • Easy to install
  • Adjustable conductor holders
  • Foam filled fibreglass shaft
  • Tested per OSHA & ASTM F-711
  • Eye bolts and nuts are silicone bronze to resist seizing
Part # Arm Length Number of Conductor Holders WLL per Conductor Holder Weight
5001 1.52m 1 68kg 5.2kg
5006 1.82m 2 68kg 6.6kg
5016 1.82m 2 68kg 6.7kg
5016-1 1.82m 2 68kg 7.0kg
