Stripper, cable, body only, 4x4, includes allen keys, Ripley
Stripper, cable, body only, 4x4, includes allen keys, Ripley
Code: 36001H
Brand: Ripley Tools
Product Details
Stripper, cable, body only, 4x4, includes allen keys, Ripley
Brand: Ripley Tools
Product Details
Stripper, cable, body only, 4x4, includes allen keys, Ripley

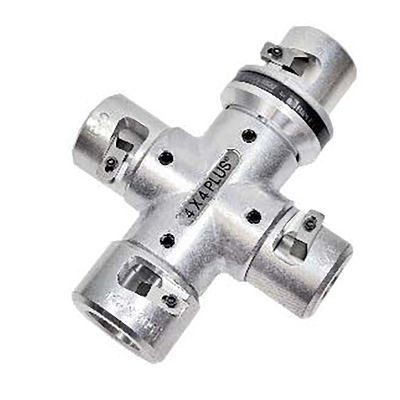

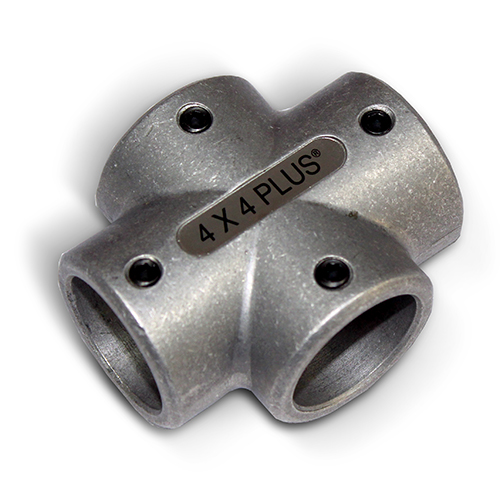

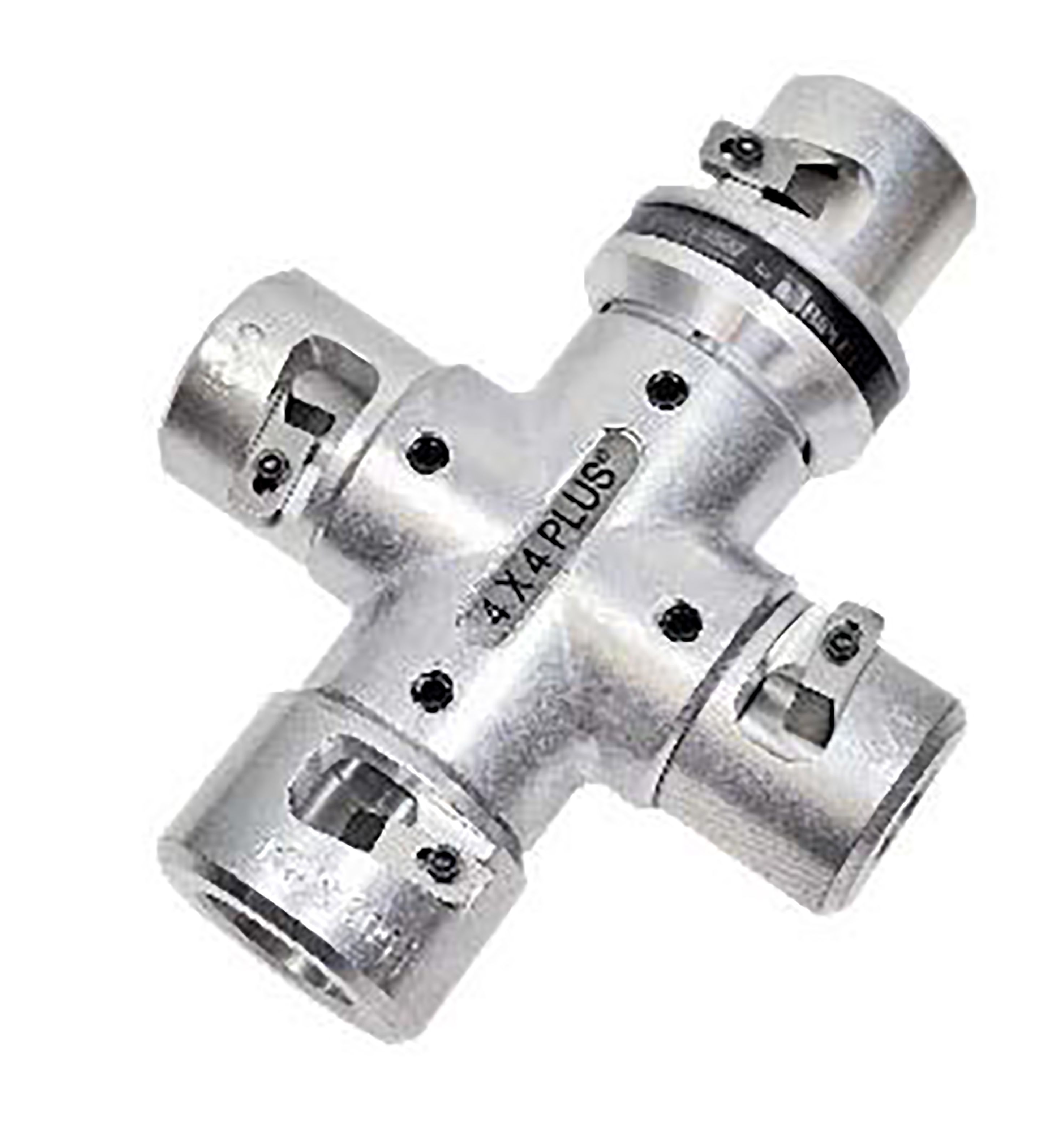

Ripley 4x4 ABC Stripper
Product Features
- Safer than ripping tools or strippers with a guarded cutting blade
- Fast and simple to use
- Precise stripping with no conductor damage
- Suitable for XLPE, PVC and EPR insulations
- Commonly used for ABC and SDI cables
- Made in the USA.
TEN Square Cut Cable Stripper Bushings
Large range of bushings suit common Australian cable sizes
Quick and simple bushing interchange for fast cable stripping
Bushings Suit the following Stripping Tools
- Milwaukee - M18™ Battery Cable Stripper - Part No. M18BCS-0C
- Ripley - Power Driven Stripper - Part No. WS68-3-8
- Ripley - Power Driven Stripper - Part No. WS68-1-4
- Ripley - 4 x 4 Stripper - Part No. 36001H
- Ripley - 2 x 2 Stripper - Part No. 36101H
Range of available bushings
| TEN Part No. | Square Cut Bushings to suit LV ABC |
|---|---|
| RB-100 | 10mm² Al XLPE OH |
| RB-101 | 16mm² Al XLPE OH |
| RB-200 | 25mm² Al XLPE OH |
| RB-201 | 35mm² Al XLPE OH |
| RB-300 | 50mm² Al XLPE OH |
| RB-301 | 70mm² Al XLPE OH |
| RB-400 | 95mm² Al XLPE OH |
| RB-401 | 120mm² Al XLPE OH |
| RB-500 | 150mm² Al XLPE OH |
| TEN Part No. | Square Cut Bushings to suit Underground |
| RB-102 | 16mm² Cu XLPE/PVC LV UG (Olex) |
| RB-202 | 35mm² Cu XLPE/PVC LV UG (Olex) |
| RB-302 | 50mm² Cu XLPE/PVC LV UG (Olex) |
| TEN Part No. | Square Cut Bushings to suit Building Cable |
| RB-103 | 16mm² Cu PVC SDI V90 - Red (Olex) |
| RB-103 | 16mm² Cu PVC SDI V90 - Black (Olex) |
| RB-303 | 70mm² 19/2.14 Cu Green/Yellow Earth building wire |
| RB-600 | 240mm² Cu Double Insulated |
| TEN Part No. | Square Cut Bushings to suit PVC |
| RB-304 | 50mm² Cu PVC 0.6/1kV - Black on White (Olex) |
| RB-305 | 70mm² Cu PVC 0.6/1kV - Black on Clear (Olex) |
| RB-305 | 70mm² Cu PVC 0.6/1kV - Black-White on Clear (Olex) |
| TEN Part No. | Square Cut Bushings to suit Misc Cable |
| RB-306 | 70mm² Cu XLPE / PVC, Black on White (Olex) |
| RB-402 | 120mm² Cu XLPE / PVC, Black on Clear (Olex) |
| RB-501 | 150mm² Cu, Black-White on Clear (Olex) |
| RB-502 | 185mm² Cu, Black-White on Clear (Olex) |
| RB-502 | 185mm² Cu, Black (Prysmian) |
| RB-501 | 150mm² Al, Black (Olex) |
| RB-601 | 240mm² Al XLPE / PVC, Black on Colour (Olex) |
| RB-700 | 157mm² HD Al, Railway, 12 x 3.27 0.6/1KV V-90 L Electric Cable (Prysmian) |
| CB6667 | Bushing spare blade |
| TEN Part No. | Ripley Stripper Bodies & Accessories |
| WS68-3-8 | RIPLEY Power/Drill Driven Stripper |
| 36001H | RIPLEY 4 x 4 Stripper |
| 36101H | RIPLEY 2 x 2 Stripper |

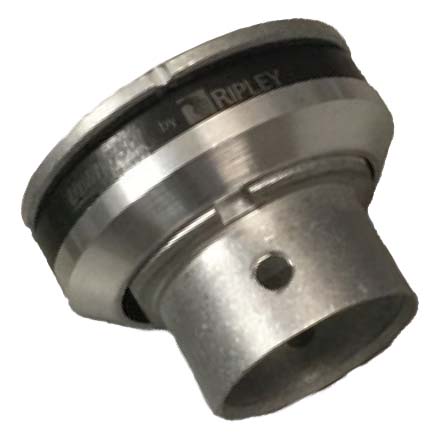

| 40110 | RIPLEY Bushing quick connect for above strippers |
