Grip, wire, chicago, 13.46 - 18.8mm, Al, Cu, ACSR, 3629kg WLL, safety latch, lock, Klein

Ten Group // Cable Pulling and Hauling Equipment // Wire Grips // Wire Grip Klein // Grip, wire, chicago, 13.46 - 18.8mm, Al, Cu, ACSR, 3629kg WLL, safety latch, lock, Klein

Code: 1656-40
Brand: Klein
Product Details

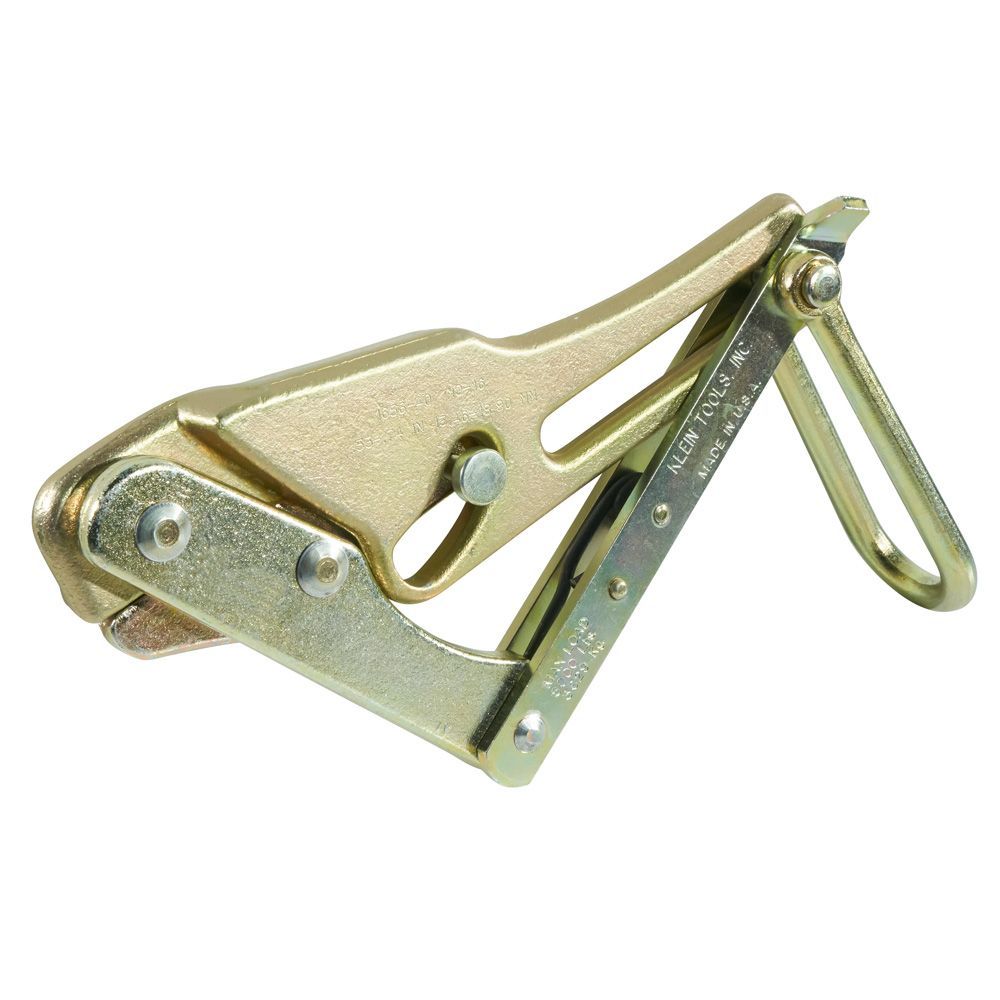

Grip, wire, chicago, 13.46 - 18.8mm, Al, Cu, ACSR, 3629kg WLL, safety latch, lock, Klein

Klein 1656-40

Part No	Min-Max Dia (mm)	WLL (kN)	Jaw Type	Jaw Length (mm)	Suitable for	Wt (kg)
1656-40	13.5-18.8	3629		140	Ideal for Bare Al and ACSR	3.8

Hot-line grips for steel stranded cable
Round, smooth inside jaw contour on this series of grips is ideal for bare ACSR, aluminum, and stranded-copper cables
Smooth jaws grip with maximum contact and are less likely to damage conductors
Jaw design helps reduce slippage to make pulling cables easier
Manufactured from drop-forged steel. Machined and heat treated for excellent durability

Part No	Min-Max Dia (mm)	WLL (kN)	Jaw Type	Jaw Length (mm)	Suitable for	Wt (kg)
S1613-40H	3-9.4	2041	1	106	Aircraft Cable, EHS, Messenger and Guy Strand. With hot latch and spring	1.4
1604-20L	3.2-12.7	2268	2	-	Aircraft Cable, EHS, Messenger and Guy Strand. With hot latch and spring	1.0
1684-5F	4-14	3629	3	127	Aircraft Cable, EHS, Messenger and Guy Strand.	2.9
1685-20	4-22	2041	4	64	Bare Al, Cu, ACSR	1.3
1625-20	7.1-19	3636	2	-	Wire Rope where damage is not an issue	1.8
1685-31	16-32	3409	4	114	Bare Al, Cu, ACSR	2.3

Jaw Type	1	2	3	4
