Grip, wire, 3.18mm-12.70mm, steel, 2268kg WLL, safety latch, spring latch, Klein
Grip, wire, 3.18mm-12.70mm, steel, 2268kg WLL, safety latch, spring latch, Klein
Code: 1604-20L
Brand: Klein
Product Details
Grip, wire, 3.18mm-12.70mm, steel, 2268kg WLL, safety latch, spring latch, Klein
Brand: Klein
Product Details
Grip, wire, 3.18mm-12.70mm, steel, 2268kg WLL, safety latch, spring latch, Klein

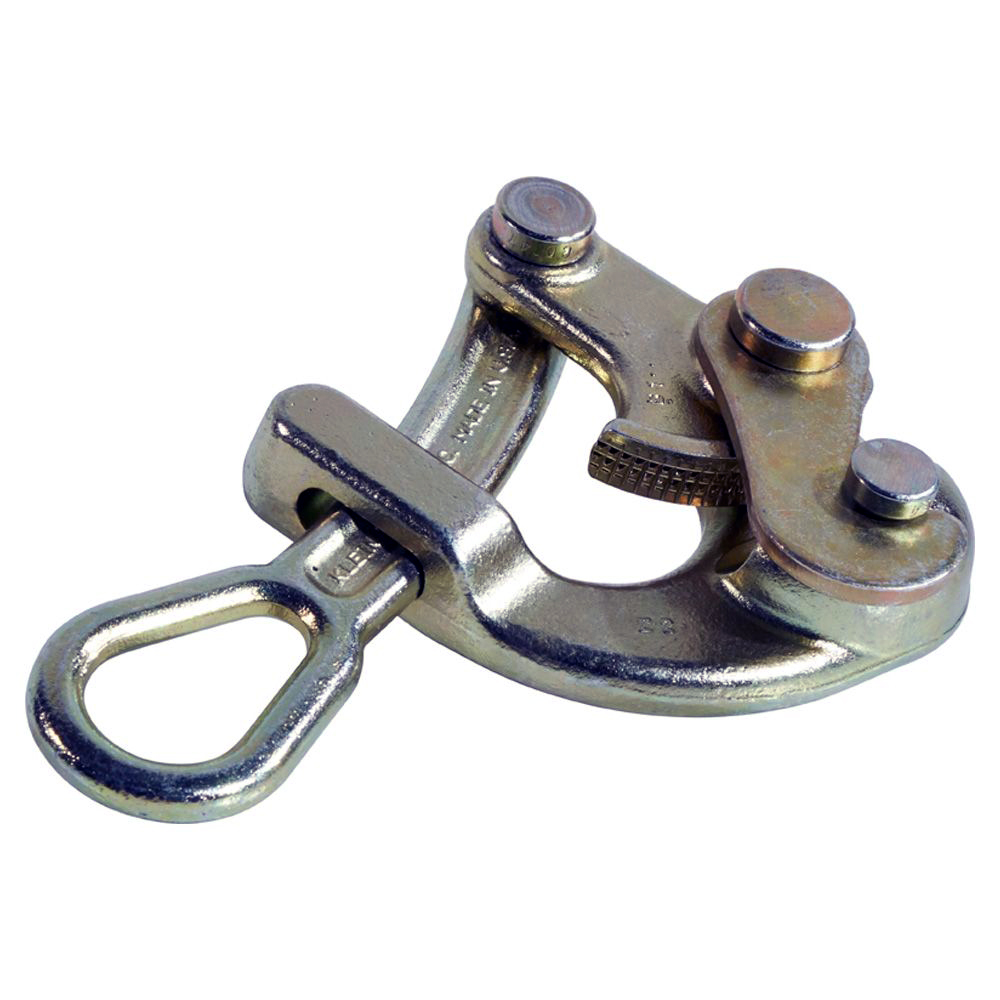

Klein 1604-20L
Klein Grip - For Messenger and Guy strand
| Part No | Min-Max Dia (mm) | WLL (kN) | Jaw Type | Jaw Length (mm) | Suitable for | Wt (kg) |
|---|---|---|---|---|---|---|
| 1604-20L | 3.2-12.7 | 2268 |  |
- | Messenger and Guy Strand. (Knurled Jaw may damage cable) | 1.0 |
- Designed for use when a light, compact grip is desired and where conductor damage is not a factor
- Swing latch helps hold cable in the jaw
- Manufactured from drop-forged steel. Machined and heat treated for excellent durability
Other Klein Grips Available from TEN
| Part No | Min-Max Dia (mm) | WLL (kN) | Jaw Type | Jaw Length (mm) | Suitable for | Wt (kg) |
|---|---|---|---|---|---|---|
| S1613-40H | 3-9.4 | 2041 | 1 | 106 | Aircraft Cable, EHS, Messenger and Guy Strand. With hot latch and spring | 1.4 |
| 1684-5F | 4-14 | 3629 | 3 | 127 | Aircraft Cable, EHS, Messenger and Guy Strand. | 2.9 |
| 1685-20 | 4-22 | 2041 | 4 | 64 | Bare Al, Cu, ACSR | 1.3 |
| 1625-20 | 7.1-19 | 3636 | 2 | - | Wire Rope where damage is not an issue | 1.8 |
| 1656-40 | 13.5-18.8 | 3629 | 4 | 140 | Ideal for Bare Al and ACSR | 3.8 |
| 1685-31 | 16-32 | 3409 | 4 | 114 | Bare Al, Cu, ACSR | 2.3 |
| Jaw Type | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
 |
|
 |
 |
